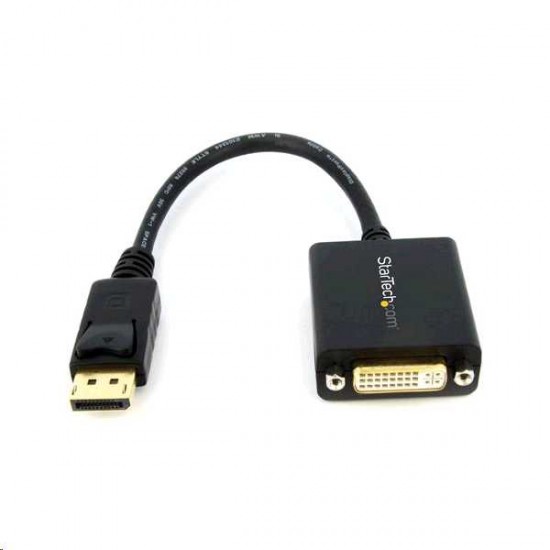

STARTECH DISPLAY PORT (MALE) TO DVI (FEMALE) VIDEO ADAPTER CABLE

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.

Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.

The StarTech.com Advantage
Simple to use, small form factor converter makes DisplayPort backwards compatible with your DVI-D display
No installation software or drivers required providing a simple plug and play solution
4 inch cable offers added flexibility in tight spots

Technical Specifications
Hardware
Adapter Style Adapter
Audio No
Converter Type Passive
Output Signal DVI-D (DVI Digital)
Performance
Maximum Digital Resolutions 1920x1200 / 1080p
Connector(s)
Connector A 1 - DisplayPort (20 pin) Latching Male
Connector B 1 - DVI-I (29 pin) Female
Special Notes / Requirements
System and Cable Requirements DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported)
Environmental
Humidity 5%-90%RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Physical Characteristics
Cable Length 6 in [152.4 mm]
Color Black
Product Height 0.7 in [17 mm]
Product Length 10 in [254 mm]
Product Weight 1.6 oz [45.4 g]
Product Width 1.7 in [42 mm]
Packaging Information
Shipping (Package) Weight 0.1 lb [0 kg]
What's in the Box
Included in Package 1 - DisplayPort to DVI Converter
