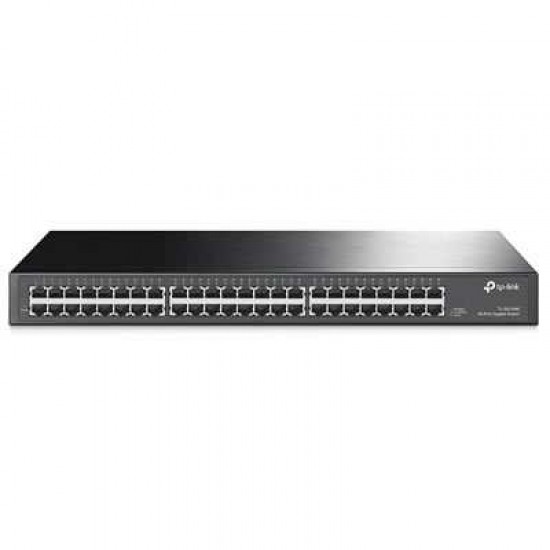

TP- LINK 48 PORT GIGABIT SWITCH 1U, 19 INCH -RACK- MOUNTABLE

The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

What This Product Does
The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Superior Performance
The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Features
100% Data filtering rate eliminates all error packets

Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput

96Gbps Switching Capacity

Auto MDI/MDIX eliminates the need for crossover cables

Supports MAC address auto-learning and auto-aging

Support the port N-Way Auto-Negotiation, Store and Forward

Compact size design for desktops, Rackmountable

Plug and Play design simplifies installation

Specifications

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity
2

Physical Security Lock
No

Power Supply
100-240VAC, 50/60Hz

Power Consumption
Maximum: 32.3W
Dimensions ( W x D x H )
17.32*8.7*1.73 in.(440*220*44 mm)

Mounting
Rack Mountable

Max Power Consumption
32.29W(220V/50Hz)

Max Heat Dissipation
110.17BTU/h

Collapse group heading

PERFORMANCE
Switching Capacity 96Gbps
Packet Forwarding Rate 71.4Mpps
MAC Address Table 16K
Buffer Memory 12Mb
Jumbo Frame 12KB
Green Technology Yes

Transfer Method Store-and-Forward

OTHERS
Certification FCC, RoHs

Package Contents
48-Port Gigabit Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet


Environment
Operating Temperature: 0?~40? (32?~104?);

Storage Temperature: -40?~70? (-40?~158?);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
