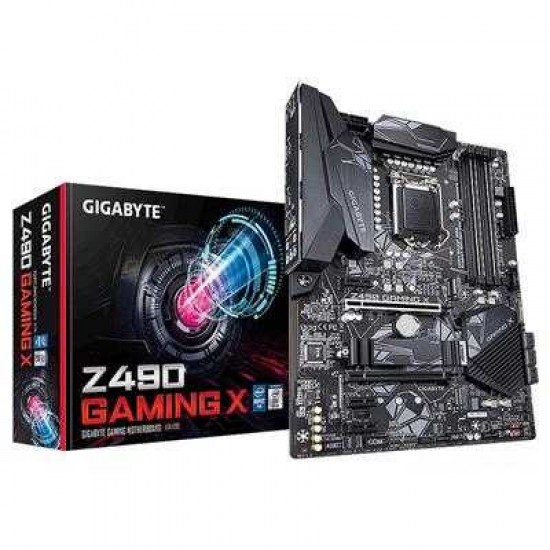

GIGABYTE Z490 GAMING X WITH DDR4-2933, 7.1 AUDIO DUAL M.2 GIGABIT LAN, CROSSFIRE MOTHERBOARD

Intel® Z490 GAMING Motherboard with Direct 11+1 Phases Power Design, 2-Way CrossFire Multi-Graphics, Intel® GbE with cFosSpeed, USB 3.2 Gen2 Type-A, Dual M.2 with 1 Thermal Guard, Smart Fan 5, Dual Armor with Ultra Durable Technology, RGB FUSION 2.0, Q-FLASH PLUS

Supports 10th Gen Intel® Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel® Optane Memory Ready
Direct 11+1 Phases Digital VRM Solution with DrMOS
Enlarged VRM Heatsink with 5W/mK Thermal Conductive Pad
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Multi-Way Graphics Support with Dual Armor and Ultra Durable Design
ALC1200 Multi-Channel Audio with High Quality Audio Capacitors and Audio Noise Guard
Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA Interface
Intel® Native USB 3.2 Gen2 Type-A with Speed Up To 10Gbps
RGB FUSION 2.0 Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
CEC 2019 Ready, Save the Power as Easy as One Click
Lightning-Fast Intel® Thunderbolt 3 AIC Support

Specifications
Make and Model Gigabyte Z490 GAMING X ATX Motherboard
CPU Support for 10th Generation Intel® Core i9 processors / Intel® Core i7 processors / Intel® Core i5 processors/ Intel® Core i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU

Chipset Intel® Z490 Express Chipset
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Supports for DDR4 4600(O.C.) / 4500(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard)
Multi-GPU Support Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz Maximum shared memory of 512 MB.

Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5 and RAID 10 Intel® Optane Memory Ready

USB Chipset: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

LAN Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication N/A

Audio Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Back Panel I/O 1 x PS/2 keyboard/mouse port 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 5 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks

Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button

I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control* * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS 1x 256Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost On/Off Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install

Operating System Supports Windows® 10 64-bit

Bundled Software Norton® Internet Security (OEM version) cFosSpeed

Form Factor ATX Form Factor

Dimensions (LxW) 30.5 x 23.0 cm
Weight N/A
