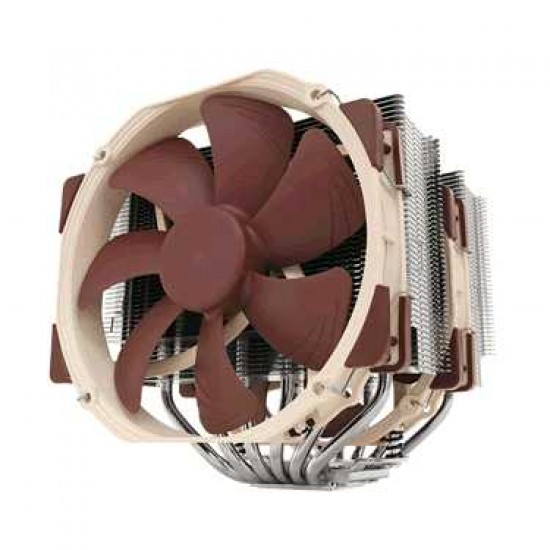

NOCTUA NH-D15 CPU COOLING FAN FOR LGA 1700- LGA1200 - LGA1155 -LGA 1151- LGA 2011 -LGA 2066 -AMD4/5

OVERVIEW:

Noctua NH-D15 Dual Tower Heatpipe Cooler w/ 2x NF-A15 140mm PWM Fans LGA115X/2011 AM2/3+ FM1/2+

Features:
Built on the basis of the legendary NH-D14 and carrying on its quest for ultimate quiet cooling performance, Noctua’s flagship model NH-D15 is an elite-class dual tower cooler for the highest demands. Its expanded heatpipe layout and two premium grade NF-A15 140mm fans with PWM support for automatic speed control allow it to further improve the NH-D14’s award-winning efficiency. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15 forms a complete premium quality solution that represents a deluxe choice for overclockers and silent-enthusiasts alike.

SPECIFICATIONS:

Socket compatibility Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)
Height (without fan) 165 mm
Width (without fan) 150 mm
Depth (without fan) 135 mm
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 161 mm
Weight (without fan) 1000 g
Weight (with fan) 1320 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of Delivery 2x NF-A15 PWM premium fan
2x Low-Noise Adaptor (L.N.A.)
Y-cable
NT-H1 high-grade thermal compound
SecuFirm2 Mounting Kit
Noctua Metal Case-Badge
Fan specifications
Model 2x Noctua NF-A15 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Max. Airflow 140,2 m³/h
Max. Airflow with L.N.A. 115,5 m³/h
Max. Acoustical Noise 24,6 dB(A)
Max. Acoustical Noise with L.N.A. 19,2 dB(A)
Input Power 1,56 W
Voltage Range 12 V
MTBF > 150.000 h
