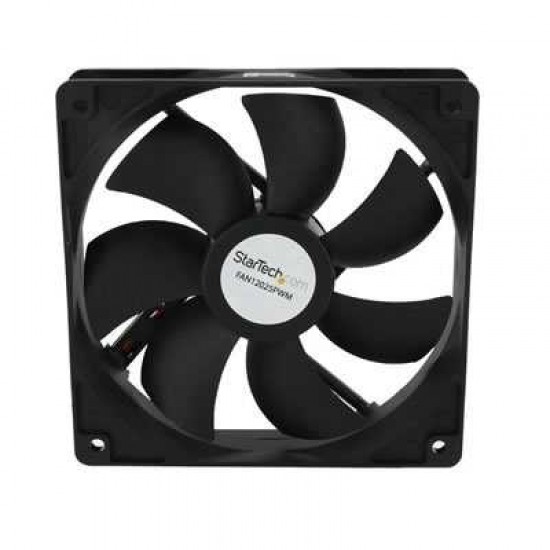

120x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector

The FAN12025PWM 120mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures to help ensure optimal performance from internal components.

With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.


Technical Specifications
Warranty Information
Warranty 2 Years
Hardware
Fan Bearing Type Ever Lubricate Bearing
Number of Conductors 4
Performance
Air Flow Rate 33.20 ~ 78.41 CFM
Fan RPM 800 ~ 2200 RPM
MTBF 40,000 Hours
Noise Level < 17.2 ~ 39 dBA
Connector(s)
Connector Type(s) 1 - LP4 (4 pin, PWM) Female
Special Notes / Requirements
System and Cable Requirements 4-pin PWM fan connector (male)
Power
Input Current 320 mA
Input Voltage 12 DC
Environmental
Humidity 0 ~ 65% RH
Operating Temperature -10°C to 70°C (14°F to 158°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Cable Length 11.6 in [295 mm]
Color Black
Enclosure Type Plastic
Product Height 1 in [25 mm]
Product Length 4.7 in [120 mm]
Product Weight 4.3 oz [122 g]
Product Width 4.7 in [120 mm]
Packaging Information
Shipping (Package) Weight 6.6 oz [188 g]
What's in the Box
Included in Package 1 - 120mm Case Fan
1 - 9 inch PWM Y-Cable
