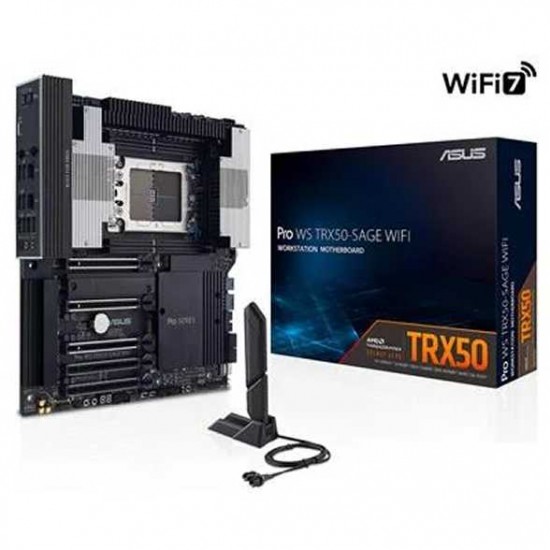

Pro WS TRX50-SAGE WIFI w/ Quad Channel DDR5 ECC, Triple PCIe 5.0 x16, Triple M.2, 10Gb + 2.5G LAN, Wi-Fi 7

A WORKSTATION WONDERLAND

CPU & DDR5 ECC RAM Overclocking, Robust 36 Power-Stage Design, 3x PCIe 5.0 x16 Slots, 2x PCIe 5.0 M.2 Slots, 10Gb + 2.5Gb LAN Ports

The Pro WS TRX50-SAGE WIFI motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-six power stages fuel AMD Ryzen Threadripper PRO 7000 WX-series and AMD Ryzen Threadripper 7000 series processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.

Specifications:

Make and Model ASUS Pro WS TRX50-SAGE WIFI Motherboard
Part Number Pro WS TRX50-SAGE WIFI

Chipset AMD TRX50 Chipset
CPU Support Ryzen Threadripper PRO 7000 WX-Series Processors
Ryzen Threadripper 7000 Series Processors

Windows® Support Windows® 11 / 10, 64 bit

Memory 4x DIMM slots, DDR5, ECC Registered Memory*
* Supported memory types, data rate, and number of DRAM modules vary depending on the CPU used and memory configuration. For more information please refer to CPU/Memory Support list under the Support tab of product information site or visit WWW.ASUS.COM/SUPPORT
Quad Channel Memory Architecture

Onboard Graphics* Onboard Graphics Not Supported

Expansion Slots* 2x PCIe 5.0 x16 slots
1x PCIe 5.0 x16 slot (x8 mode)
1x PCIe 4.0 x16 slot
1x PCIe 4.0 x16 slot (x4 mode)
* Please check the PCIe Bifurcation Table FAQ on the ASUS Support Site

Storage 3x M.2 slots*:
M.2_1 slot (Key M), PCIe 5.0 x4 type 2242/2260/2280 Slot
M.2_2 slot (Key M), PCIe 5.0 x4 type 2242/2260/2280 Slot
M.2_3 slot (Key M), PCIe 4.0 x4 type 2280 Slot
* AMD RAIDXpert2 supports RAID 0/1/5/10 on M.2 Ports
4x SATA 6Gb/s ports*
* AMD RAIDXpert2 supports RAID 0/1/5/10 on SATA Ports

1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device

USB 9x Rear USB Ports:
1x USB 3 Gen 2x2 (20Gbps) Type-C port
6x USB 3 Gen 2 (10Gbps) Type-A ports
2x USB 2.0 (480Mbps) Type-A ports
7x Front USB Ports
1x USB 3 Gen 2x2 (20Gbps) Type-C port with 27W PD / QC4+ via 1x USB 3 header
2x USB 3 Gen 1 (5Gbps) Type-A ports via 1x USB 3 header
4x USB 2.0 (480Mbps) Type-A ports via 2x USB 2 headers


LAN Marvell® AQtion 10Gb Ethernet Chipset
1x 10Gbps RJ45 LAN port
Intel 2.5Gbps Ethernet Chipset:
1x 2.5Gbps RJ45 LAN port

Wi-Fi Wi-Fi 7 Wireless Chipset: TriBand Wi-Fi 7 802.11be supports 2.4 / 5 / 6GHz bands; when Running Wi-Fi 7 MLO*
* Full functions support will not be ready until the Windows 11 2024 Platform Upgrade, aka Windows 11 24H2, or later
Supports up to 160MHz bandwidth for up to 2.8 Gbps transfer rates
Bluetooth Wi-Fi 7 Wireless Chipset:
Bluetooth v5.4

Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC:
- Impedance Sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Inputs:
1x Rear 3.5mm Mic In Port
1x Front panel audio header (F_AUDIO)
Audio Outputs:
1x Rear 3.5mm Headphone Port
1x S/PDIF Digital Optical Audio Port


Rear I/O Ports 1x USB 3 Gen 2x2 (20Gbps) Type-C port
6x USB 3 Gen 2 (10Gbps) Type-A ports
2x USB 2.0 (480Mbps) Type-A ports
2x Wireless Antenna Jacks

1x Marvell® AQtion 10Gb Ethernet port
1x Intel® 2.5Gb Ethernet port
1x Rear 3.5mm Mic In Port
1x Rear 3.5mm Headphone Port
1x S/PDIF Digital Optical Audio Port

1x BIOS FlashBack Button
1x Clear CMOS Button

Internal I/O Connectors Fan and Cooling:
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x W_PUMP+ header
4x 4-pin Chassis Fan headers
2x 4-pin VRM Fan header (with VRM FAN onboard)
Power:
2x 24-pin Main Power connectors
2x 8-pin +12V Power connectors
2x 8-pin PCIe to CPU power connectors
1x 6-pin PCIe Power connector
1x 8-pin PCIe Power connector




Storage:
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
1x SlimSAS port
USB:
1x USB 3 Gen 2x2 (20Gbps) Type-C port with 27W PD / QC4+ via 1x USB 3 header
2x USB 3 Gen 1 (5Gbps) Type-A ports via 1x USB 3 header
4x USB 2.0 (480Mbps) Type-A ports via 2x USB 2 headers

Miscellaneous Headers:
1x BMC header
1x COM Port header
1x USB4 header
1x Front panel audio header (F_AUDIO)
1x SPI TPM header (14-1pin)
1x 10-1 pin system panel header
1x Chassis intrusion header
1x Thermal Sensor header
Switches and Jumpers:
1x Slow mode Switch
1x LN2 mode Jumper

Buttons:
1x FlexKey Button
1x Start Button
1x Safe Boot Button
1x ReTry Button

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE (UEFI mode)

Special Features ASUS Q-Design:
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-SlotASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- VRM heatsink design with active fans
ASUS EZ DIY:
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMMBespoke

Business Focused Features:
- 24/7 Reliability
- Overcurrent Protection

Software Features ASUS Exclusive Software:
Armoury Crate:
- Fan Xpert 4
ASUS CPU-Z:
IT Management Software Supported:
- ASUS Control Center Express (ACCE)

Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash UtilityFlexKey

UEFI BIOS

Form Factor CEB Form Factor

Dimensions 305 x 280mm
Weight N/A
