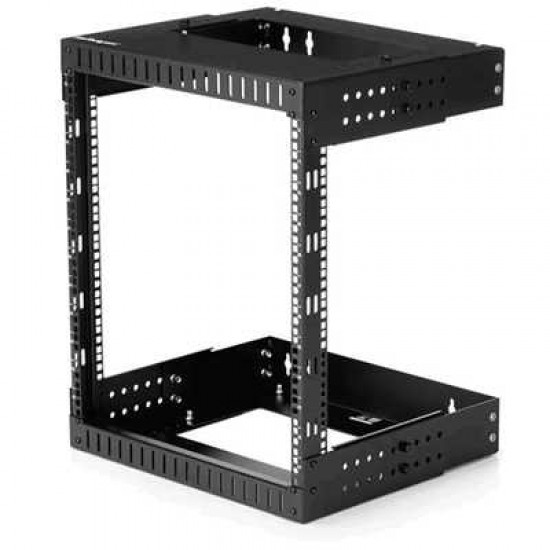

STARTECH 12U WALL MOUNTED SERVER RACK- UPTO 20 IN DEEP

Mount your server or networking equipment to the wall, using this adjustable 12U open frame rack
Accommodate larger devices with adjustable frame
Free up space by mounting your equipment on the wall
Easy installation with mounting holes spaced 12 and 16 in. apart to match standard wall studs

SPECIFICATIONS
Technical Specifications
Warranty Information
Warranty 5 Years
Hardware
Frame Type Open Frame
Industry Standards EIA/ECA-310-E
Mounting Hole Types Square (For Cage Nut)
Mounting Rail Profile L-Shape
Rack Type 2-Post
Special Features Adjustable Mounting Rails
Easy Assembly
U-Markings
Wall-Mountable
U Height 12U
Wallmountable Yes

Performance
Weight Capacity 198.9 lb [90 kg]

Physical Characteristics
Color Black
Construction Material Steel

Product Measurements
Maximum Mounting Depth 19.9 in [50.5 cm]
Product Height 25.2 in [64 cm]
Product Length 20.1 in [51 cm]
Product Width 19.8 in [50.3 cm]
Weight of Product 32.3 lb [14.6 kg]

Packaging Information
Flat Pack (Assembly Required) Yes
Package Height 5.1 in [13 cm]
Package Length 26.4 in [67 cm]
Package Width 20.9 in [53 cm]
Shipping (Package) Weight 37.6 lb [17 kg]

What's in the Box
Included in Package 2 - Vertical Rails
2 - Front Horizontal Brackets
2 - Rear Horizontal Brackets
48 - M6 Cage Nuts
48 - M6 Screws
48 - Plastic Washers
16 - Assembly Screws
24 - Flat Washers
24 - Bolts
1 - User Manual
