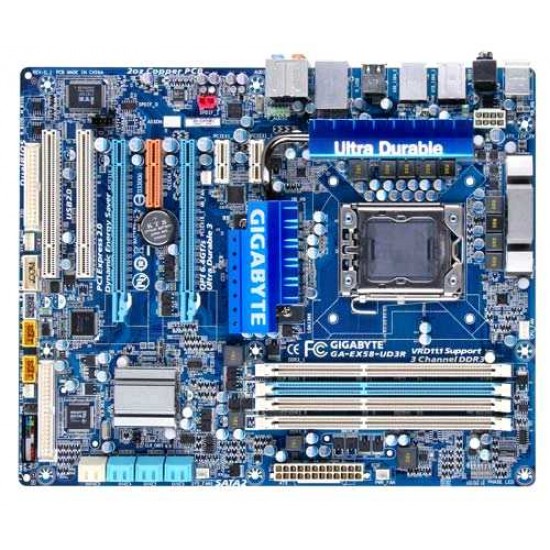

GIGABYTE GA-EX58-UD3R SKT.1366 INTL X58 3 CHANNEL DDR3 4 DIMM HD-AUDIO, SATA, RAID, ATX - CLEARANCE BOARD - INCLUDES INTEL I7-920 PROCESSOR AND 8GB RAM

CLEARANCE BOARD
INCLUDES INTEL I7-920 PROCESSOR AND 8GB RAM

CPU
-Support for an Intel® Core i7 series processor in the LGA 1366 package (Go to CPU Support List for the latest CPU support )
-L3 cache varies with CPU

QPI
-4.8GT/s / 6.4GT/s

Chipset
-North Bridge: Intel® X58 Express Chipset
-South Bridge: Intel® ICH10R

Memory
-4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
-Dual/3 channel memory architecture
-Support for DDR3 2000+/1333/1066/800 MHz memory modules (Go to Memory Support List for the latest memory support list.)

Audio
-Realtek ALC888 codec
-High Definition Audio
-2/4/5.1/7.1-channel
-Support for S/PDIF In/Out
-Support for CD In

Storage Interface
South Bridge:
6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

2x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1 and JBOD
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394
T.I. TSB43AB23 chip
Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a brackets connected to the internal IEEE 1394a headers)

USB
Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
8 x SATA 3Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x power fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a headers
1 x serial port header
1 x power LED header
1 x chassis intrusion header
1 x clearing CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
2 x IEEE 1394a port
8 x USB 2.0/1.1 ports
1 x RJ-45 ports
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller
iTE IT8720 chip

H/W Monitoring
System voltage detection
CPU/System/North Bridge temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 2)

BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
