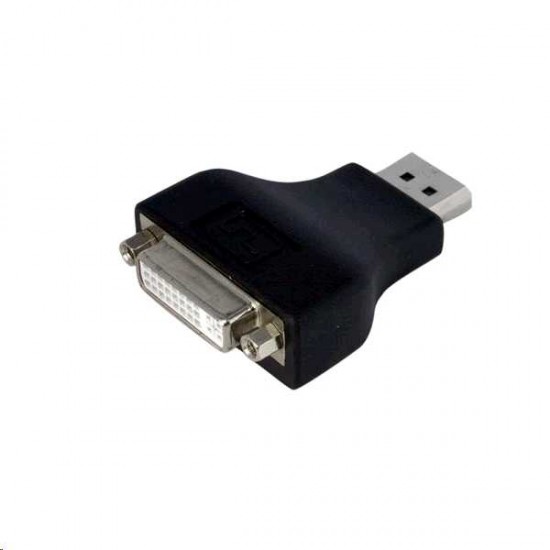

DISPLAY PORT (MALE) TO DVI (FEMALE) ADAPTER

The StarTech.com DP2DVIADAP DisplayPort DVI adapter lets you connect a DVI-D display to a DisplayPort video source (e.g. DisplayPort video cards, etc.), eliminating the expense of having to upgrade to a DisplayPort enabled display while providing a hassle-free connection to any DisplayPort video card/signal source.

The DVI/DisplayPort adapter supports display resolutions up to 1920x1200, allowing you to take full advantage of single link DVI capability.
DP2DVIADAP is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

Features
Supports PC resolutions up to 1920x1200 and HDTV resolutions up to 1080p
Easy to use, no software required


Applications
Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
Keep your existing DVI monitor to be used with your new DisplayPort device
Ideal for using your DVI monitor as a secondary display

SPECIFICATIONS:

Warranty Information
Warranty 2 Years
Hardware
Adapter Style Adapter
Audio No
Converter Type Passive
Output Signal DVI-D (DVI Digital)
Performance
Maximum Digital Resolutions 1920x1200 / 1080p
Connector(s)
Connector A 1 - DisplayPort (20 pin) Male
Connector B 1 - DVI-I (29 pin) Female
Special Notes / Requirements
System and Cable Requirements DP++ (DisplayPort++) port required from video card or video source for DVI or HDMI pass-through
Physical Characteristics
Color Black
Product Height 0.6 in [15 mm]
Product Length 2.4 in [60 mm]
Product Weight 1.3 oz [38 g]
Product Width 1.6 in [40 mm]
Packaging Information
Shipping (Package) Weight 0.1 lb [0 kg]
What's in the Box
Included in Package 1 - DisplayPort to DVI Adapter
