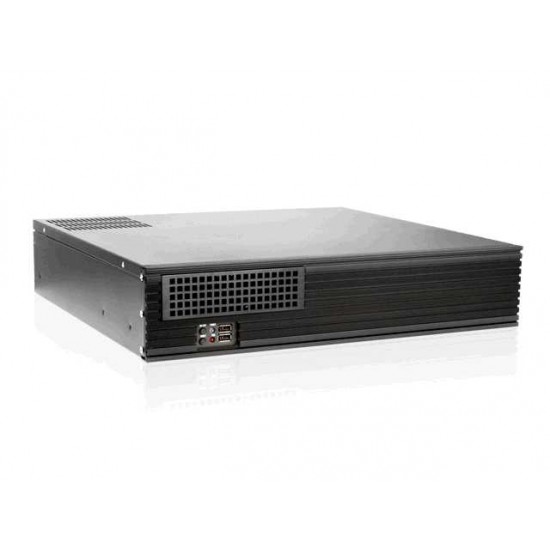

I STAR USA 2 U COMPACT RACKMOUNT MICRO ATX CHASSIS

Main Features:

microATX Chassis
Industrial Chassis with 15" in Depth
Supports Front Access USB2.0 x2
Power and HDD LED
Power and Reset Switch
Support ATX PS2 Power Supply
Support 4 x Low Profile Add-on Cards

Product Introduction
D-213-MATX is a reliable and stable 2U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 15" in depth and has optional two intake 80mm cooling fans at front for air ventilation. In addition, D-213-MATX supports a standard ATX PS2 power supply to meet regular server system applications.


PRODUCT DETAILS:
Model Number D-213-MATX
RoHS Compliance Version Yes
Standard Drive Bays 3.5" Drive (internal): 2 5.25" Drives: 1
Indicators Power, HDD
Switches Power, Reset
Expansion Slots 4 (low profile)
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Zinc-Coated Steel
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 9.6 x 9.6 (microATX, mini-ITX)
Optional Fan: 80mmx2
Ordering Information (Part Number) Black Bezel:D-213-MATX Blue Bezel:D-213-MATX-BLUE Red Bezel:D-213-MATX-RED Silver Bezel:D-213-MATX-SILVER
Dimensions (WxHxD) 19.00" x 3.50" x 15.35" 482.6 mm x 88.9 mm x 389.9 mm
Notes Note: optional sliding rails TC-RAIL-20 will only work with new version of this chassis with 4 mounting holes on sides

Supply Brackets Not Required
