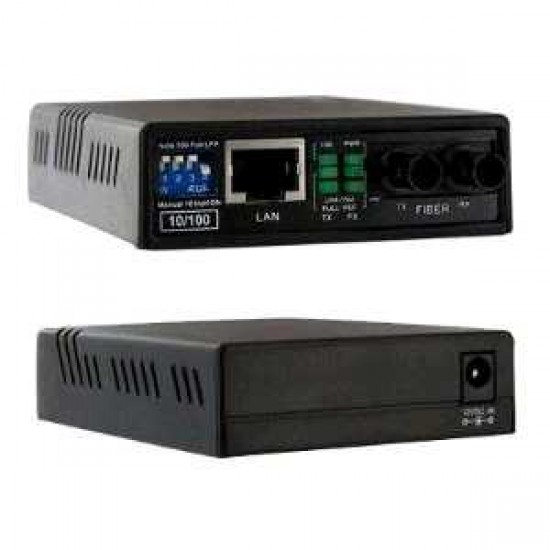

STARTECH 10/100 MBPS ETHERNET TO MULTI MODE ST FIBRE MEDIA CONVERTER-2 KM

This MM Fiber to Ethernet Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone. The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability. Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

SPECIFICATIONS:

Warranty Information
Warranty 2 Years
Physical Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.8 in [20 mm]
Product Length 3.7 in [95 mm]
Product Weight 3.2 oz [90.5 g]
Product Width 3 in [75 mm]
Hardware
Industry Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-FX
IEEE 802.3u 100BASE-TX
PoE No
WDM No
Performance
Fiber Operating Mode Half/Full-Duplex
Fiber Type Multi Mode
Max Transfer Distance 2 km (1.2 mi)
Maximum Data Transfer Rate 10/100Mbps
MTBF 65,000 Hours
Optical Power -14 ~ -20 dBm
Power Budget 11 dB
Sensitivity -31 dBm
Wavelength 1310nm
Connector(s)
Local Unit Connectors 1 - Fiber Optic ST Duplex Female
1 - RJ-45 Female
Indicators
LED Indicators 1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link)
1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link)
1 - Full ( Full duplex / Half duplex)
1 - Power
1 - Speed (10 or 100 Mbps)
Power
Center Tip Polarity Positive
Input Voltage 115 AC
Output Current 0.2A
Output Voltage 12 DC
Plug Type M
Power Source AC Adapter Included
Environmental
Humidity 10~90% RH
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Packaging Information
Shipping (Package) Weight 0.9 lb [0.4 kg]
What's in the Box
Included in Package 1 - Media Converter
1 - Power Adapter
1 - Instruction Manual
