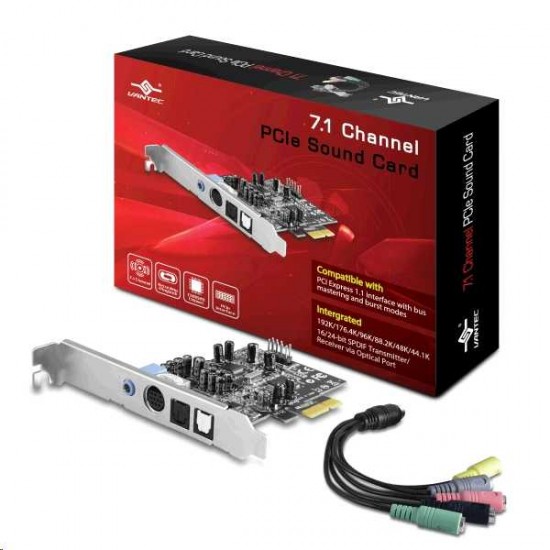

Vantec UGT-S220 7.1 Channel PCIe Sound Card - 1x LINE/MIC In & S/PDIF IN/OUT for Win VISTA/7/8/10

7.1 Channel PCIe Sound Card
The Vantec 7.1 Channel PCIe Sound Card comes with a wealth of features like HD Audio, Extensive Audio format support and more. It is the easiest way to update your PCIe based system with the latest sound technology. Once installed, this card with all its assortment of audio inputs will allow you to enjoy all your movies and audio files to their fullest potential. Hear the difference with the Vantec 7.1 Channel PCIe Sound Card.

Features
Compatible with PCI Express 1.1 interface with bus mastering and burst modes
Build in HD Audio controller into CM8828 chipset
Intel HD Audio Specification compatible

Low Profile Bracket included
Audio format supports 192K/176.4K/96K/88.2K/48K/44.1K and 16/24bits resolution
Integrated 192K/176.4K/96K/88.2K/48K/44.1K, and 16/24-bit SPDIF transmitter/Receiver via optical port

Specifications
Model: UGT-S220
Bus: PCIe
Chipset: C-Media CM8828
Audio Port: 1 x Line In 1 x Mic In 1 x Front Speaker 1 x Side Speaker 1 x Rear Speaker 1 x Center/Bass Speaker 1 x S/PDIF in (via Optical 1 x S/PDIF Out (via Optical)
Dimension: 69mm x 87mm x 19mm

System Requirements:
Computer With Available PCIe Slot
Windows® XP/2003/Vista/7/8/8.1/10 (32/64 bit)
Optical Drive for Driver installation or www.vantecusa.com to download
DirectX 8.1 above is required

Package Contents:
Vantec 7.1 Channel PCIe Sound Card
Quick Installation Guide
Mini-DIN to 3.5mm Fan-out cable
Driver CD
Low Profile Bracket
