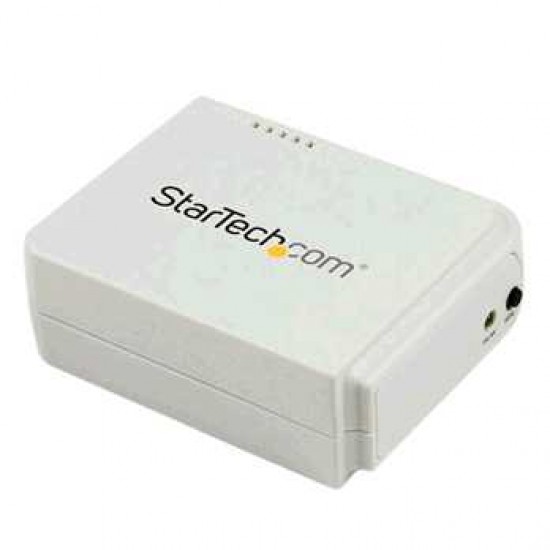

STARTECH 1 PORT USB WIRELESS N NETWORK PRINT SERVER WITH 10/100 MBPS ETHERNET PORT

The PM1115UW Wireless-N Print Server lets you share a standard USB printer with multiple users simultaneously over a WiFi network, or a wired LAN connection.
This compact wireless print server supports 802.11b/g/n wireless standards for functionality with almost any wireless network, plus, serving as a primary or backup interface the print server also offers an RJ45 port for 10/100 Mbps wired connections. Providing wireless network printing access enables you to place your printer in any location with network access and avoids the added cost of purchasing individual printers for each workstation or area.
This wireless USB print server can have you up and running in minutes, using either a web-based interface or a Windows® based installation wizard, and also features a WiFi Protected Setup (WPS) button for quick and easy connection to your wireless network. Compatibility with USB 2.0 standards and a wide variety of USB printers and operating systems makes this network print server perfect for installation into mixed environments, with Simple Network Management Protocol (SNMP) support for remote monitoring.


The StarTech.com Advantage

Avoid the added costs of purchasing additional printers with wireless or wired network print sharing
Convenient setup options with Windows® or web-based configuration
Broad compatibility for use with most USB printers on the market

Hardware
Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.11b/g/n Wireless
Interface USB 2.0
RJ45 (10/100 Ethernet)
Wireless Ethernet
Ports 1
Performance
Compatible Networks 10/100 Mbps
Frequency 2.4 GHz
Security Features WEP Data Encryption
WPA and WPA2-PSK Data Encryption
Supported Protocols TCP/IP (LDP / LPR Printer Port)
IPX
NetBEUI
AppleTalk
SNMP
SMB over IP
Connector(s)
Connector Type(s) 1 - USB Type-A (4 pin) USB 2.0 Female
1 - RJ-45 Female
1 - Wireless N (IEEE 802.11n)
Software
OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016
Mac OS 10.x, 9.x
Linux (LTS Versions only)
Special Notes / Requirements
Note OS Compatibility refers to the included software only – the Print Server itself can be used without software on any platform that supports network printing
System and Cable Requirements USB printer cable not included
Indicators
LED Indicators 1 - Status
1 - USB
1 - WLAN
Power
Center Tip Polarity Positive
Input Current 310 mA
Input Voltage 100 ~ 240 AC
Output Current 2 A
Output Voltage 5 DC
Plug Type C
Power Consumption (In Watts) 10
Power Source AC Adapter Included
Environmental
Humidity 0~70% RH (Non-Condensing)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -5°C to 65°C (23°F to 149°F)
Physical Characteristics
Color White
Enclosure Type Plastic
Product Height 1 in [25 mm]
Product Length 2.8 in [72 mm]
Product Weight 1.9 oz [54 g]
Product Width 2.3 in [58 mm]
Packaging Information
Shipping (Package) Weight 12.7 oz [360 g]
What's in the Box
Included in Package 1 - Wireless Print Server
1 - Power Adapter
1 - Software CD
1 - Quick Install Guide
