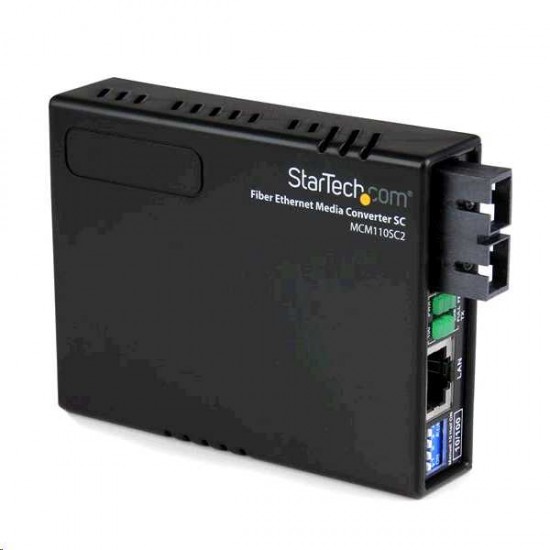

STARTECH FIBER TO ETHERNET MEDIA CONVERTER

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM, Cisco, Lucent and Nortel networks and fully complies with applicable IEEE 802.3 standards.

The StarTech.com Advantage
Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion

Hardware
Industry Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-FX
IEEE 802.3u 100BASE-TX
PoE No
WDM No
Performance
Fiber Operating Mode Half/Full-Duplex
Fiber Type Multi Mode
Max Transfer Distance 2 km (1.2 mi)
Maximum Data Transfer Rate 10/100Mbps
MTBF 65,000 Hours
Wavelength 1310nm
Connector(s)
Local Unit Connectors 1 - RJ-45 Female
Remote Unit Connectors 1 - Fiber Optic SC Duplex Female
Indicators
LED Indicators 1 - Ethernet Link & Activity (ON - Ethernet Link OK, Blinking - Activity on Ethernet Link)
1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
1 - Fiber Link & Activity (On - Fiber Link OK, Blinking - Activity on Fiber Link)
1 - Full ( Full duplex / Half duplex)
1 - Power
1 - Speed (Off - 10Mbps, On - 100 Mbps)
Power
Center Tip Polarity Positive
Input Voltage 115 AC
Output Current 0.2A
Output Voltage 12 DC
Plug Type M
Power Source AC Adapter Included
Environmental
Humidity 10~90% RH
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.8 in [20 mm]
Product Length 3.7 in [95 mm]
Product Weight 3.2 oz [90.5 g]
Product Width 3 in [75 mm]
Packaging Information
Shipping (Package) Weight 0.9 lb [0.4 kg]
What's in the Box
Included in Package 1 - Media Converter
1 - Power Adapter
1 - User's Manual
