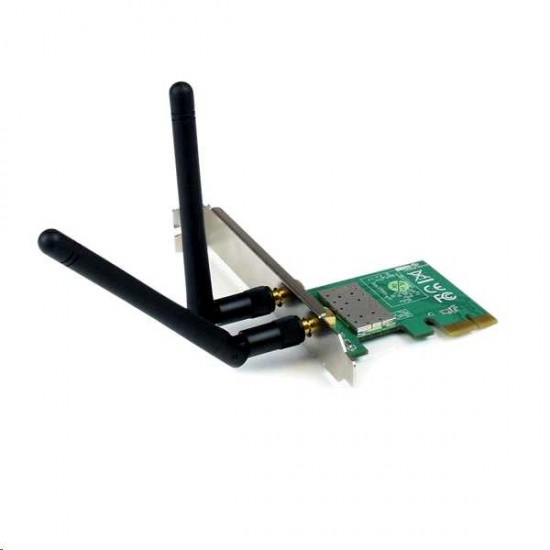

STARTECH PCIE 300 MBPS WIRELESS N NETWORK ADAPTER

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.

Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.

Technical Specifivations
Hardware
Antenna Configuration 2x2:2 (TxR:S)
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Ralink RT5392
Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE802.11n
Interface Wireless Ethernet
Performance
Bandwidth 20/40 MHz
Frequency Range 2.4 GHz ~ 2.484 GHz
Full Duplex Support Yes
Maximum Data Transfer Rate 802.11n: 300 Mbps
Modulation OFDM/DSSS/DBPSK/DQPSK/CCK
Security Features TKIP/AES
WEP Data Encryption
WPA and WPA2-PSK Data Encryption
WPA and WPA2 Enterprise Data Encryption
Supported Protocols CSMA/CA
Connector(s)
Connector Type(s) 2 - RP-SMA (Coax, Reverse Polarity SubMiniature A) Female
Software
OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2
Linux 2.6.32 to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements Available full profile PCI Express expansion slot
Indicators
LED Indicators 1 - Link/Activity (green)
Physical Characteristics
Product Height 0.7 in [18 mm]
Product Length 3 in [75 mm]
Product Weight 1.3 oz [36 g]
Product Width 1.9 in [49 mm]
Packaging Information
Package Quantity 1
Shipping (Package) Weight 5.7 oz [162 g]
What's in the Box
Included in Package 1 - PCI Express Wireless Networking Card
2 - Antenna
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
