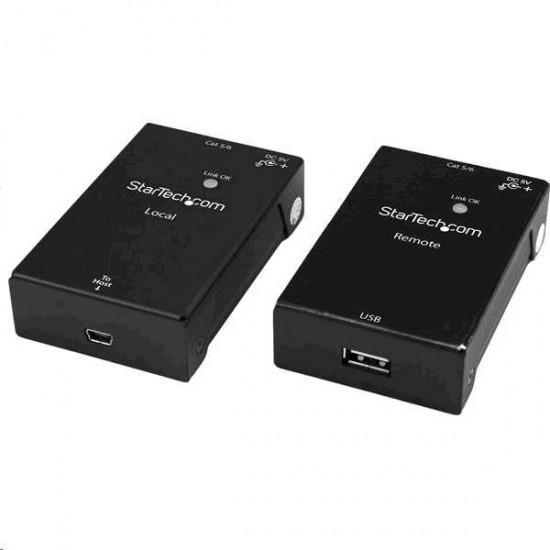

STARTECH USB 2.0 OVER CAT5/CAT6 EXTENDER KIT

Here’s a versatile and cost-effective USB 2.0 extender. It gives you the freedom you need to place your USB device further away, making it perfect for the homes, offices, classrooms, and many other environments. Now, you can easily access and use your USB 2.0 device in a remote location, up to 165 ft. (50 m) away, using Cat5 or Cat6 cable.

Eliminate hassle and smash distance limitations
This USB extender overcomes the 16 ft. cable length limitations of traditional USB 2.0 cables, so you can create a more efficient, more flexible workspace.

It’s an inexpensive USB-to-Ethernet solution that’s ideal for virtually any USB 2.0 device. You can connect a webcam at the back of a classroom, or a printer in another room at the office, all up to 50 m away from your host computer.

Plus, with a power adapter included for the remote unit, you can connect power-hungry USB devices such as external hard drives.

Rugged durability and peace of mind
Unlike other USB extenders that feature a plastic housing, this extender offers a metal casing that offers rugged durability. Whether the extender is installed in a permanent location, or will be moved from place to place, it gives you the peace of mind that your USB peripheral remains connected and accessible, right where you need it.

Supports any operating system as well as older devices
The USB 2.0-over-Cat5-or-Cat6 extender is OS independent, so it supports a variety of operating systems. Setup is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.

Hardware
Cabling Cat 5 UTP or better
Ports 1
Performance
Max Distance 50 m / 165 ft
Maximum Data Transfer Rate 480Mbps
MTBF 72,000 Hours
Connector(s)
Local Unit Connectors 1 - USB Mini-B (5 pin) Female
1 - RJ-45 Female
Remote Unit Connectors 1 - USB Type-A (4 pin) USB 2.0 Female
1 - RJ-45 Female
Software
OS Compatibility OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements A host computer with an available USB-A port (USB Type-A)
Terminated RJ45 Cat5e or better Ethernet cable
Indicators
LED Indicators 1 - Power / Link
Power
Center Tip Polarity Positive
Input Current 0.6 A
Input Voltage 100 ~ 240 AC
Output Current 2 A
Output Voltage 5 DC
Plug Type N
Power Consumption (In Watts) 10
Power Source AC Adapter Included
Environmental
Humidity 0~80% RH (Non-condensing)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 0.9 in [22 mm]
Product Length 3.1 in [80 mm]
Product Weight 10.7 oz [304 g]
Product Width 2 in [52 mm]
Packaging Information
Shipping (Package) Weight 25.3 oz [717 g]
What's in the Box
Included in Package 1 - USB 2.0 extender local unit
1 - USB 2.0 extender remote unit
1 - USB 2.0 cable [59 mm / 2.3"]
1 - RJ45 cable [165 mm / 6.5"]
8 - rubber feet
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - quick-start guide
