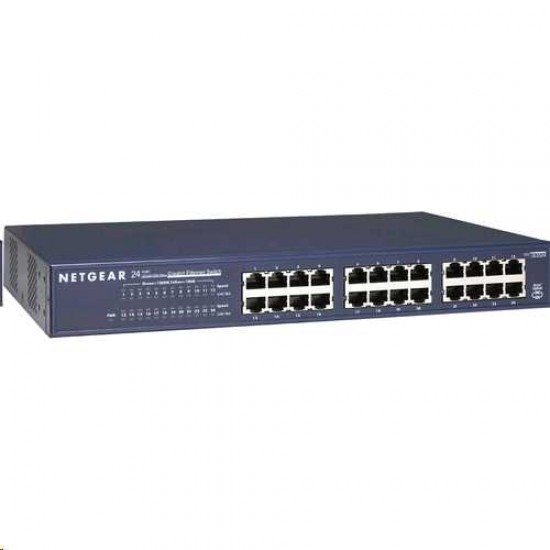

NETGEAR PROSAFE 24 PORT GIGABIT RACKMOUNT SWITCH

Each of the 24 on the ProSafe Gigabit Rackmount Switch from Netgear supports data transfer rates of up to 2000 Mbps in full-duplex mode. Plug-and-play functionality and a rackmount design makes for easy installation while 238,872 hours MTBF rating ensures the switch remains reliable when pushed to its limits. This ProSafe switch features Store and Forward packet switching and Auto Uplink ports for automatic MDI/MDI-X detection. Users also benefit from a 48 Gbps switching capacity, 256 KB RAM buffer, and 8K MAC address table to ensure each client receives sufficient bandwidth and data flows about the switch quickly and efficiently.

Ports 24 x Gigabit Ethernet ports
Switching Bandwidth 48 Gbps
Forwarding Rate 10 Mbps port: 14,880 frames/sec
100 Mbps port: 148,800 frames/sec
1000 Mbps port: 1,488,000 frames/sec
Latency 10 Mbps: 35µs (max)
100 Mbps: 30µs (max)
1000 Mbps: 15µs (max)
RAM Buffer 256 KB
MAC Address Database 8 K
Power Consumption Power Cord: 100-240 V; 50-60 Hz; plug is localized to country of sale
17.9 W
Standards Compliance IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x fl ow control
IEEE 802.3 CAMA/CD
IEEE 802.3az Energy Efficient Ethernet
Jumbo frame support (up to 9 KB)
Status LEDs Unit: Power
Per Network Port: Link, activity, speed
Temperature & Humidity Operating Temperature: 32 to 122°F / 0 to 50°C
Operating Humidity: 90% maximum relative humidity, non-condensing
Storage Temperature: -4 to 158°F / -20 to 70°C
Storage Humidity: 10 to 95% relative humidity
Electromagnetic Emissions CE Class A, including EN 55022
(CISPR 22) and EN 55024
FCC Part 15 Class A
VCCI Class A
C-Tick Class A
KCC
CCC
Safety Agency Approvals UL (UL 60950-1)/ cUL
CE LVD (EN 60950-1)
CB
KCC
CCC
RU EAC
System Requirements UTP Category 5 cables or better
Network software (e.g., Windows, Mac OS, Linux)
Dimensions 12.9 x 6.7 x 1.7" / 328 x 169 x 43 mm
Weight 3.64 lb / 1.65 kg
