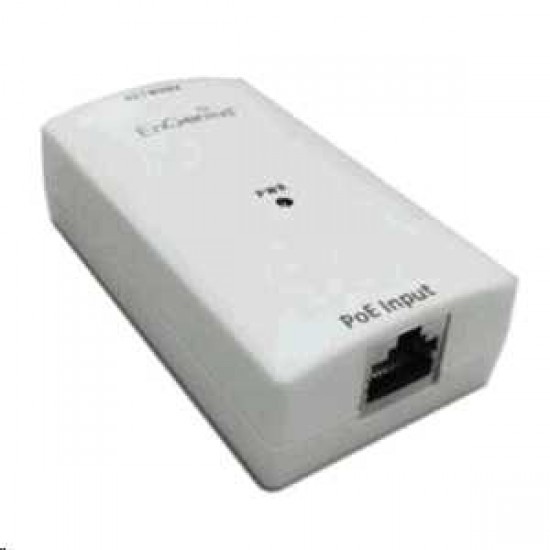

ENGENIUS TECHNOLOGY POWER OVER ETHERNET INJECTOR CONVERTER

Product Highlights
The EPD-4824 Converter is designed to work with EnGenius ENS202, ENS202EXT, ENS500EXT, ENH500EXT, ENH202, and ENH500 wireless outdoor APs. With a power output of up to 24W, the EPD-4824 gives network administrators, IT managers, and installers the option to place PoE-client devices outdoors where power outlets are scarce.
Features Gigabit In & Out Ports
Converts 802.3at/af 48V Power Into 24V Proprietary Power Output
Disconnect, Short-Circuit & Power Surge Protection

Technical Specifications
Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T
IEEE 1000Base-T

Protocol
CSMA/CD

Ports
1x RJ45 Connector for Proprietary 48V Input
1x RJ45 Connector for 24V Output

Data Lines
Pin1, Pin2

Power Lines
Pin4, Pin5, Pin8

Diagnostic LEDs
Power: Green

Power Output
Provides up to 24W
Input: IEEE 802.3af/at
Output: DC 24V (802.3at Input = 24W, 802.3af Input 12.32W)

Reliability/MTTF
25000 Hours
