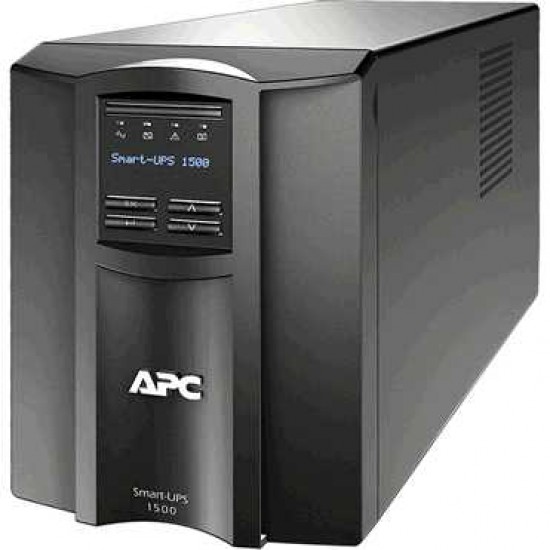

APC SMART-UPS 1500VA LCD 120V WITH SMART CONNECT

Smart-UPS 1500VA with APC SmartConnect Reliable Backup Power and Protection for Your Valuable IT Equipment

APC SmartConnect makes Smart-UPS more adaptable and easier to deploy than ever before, enabling you to view the status of your UPS through a secure web portal. Through this intuitive remote management interface, you'll receive automatic notifications, firmware updates, and advanced support; providing you with added value - and more importantly - added peace of mind.
APC Smart Connect is the first cloud-enabled UPS for distributed IT. View the status of your UPS on a secure portal via any internet connected device, receive notifications, firmware updates and more
1500VA / 1000W Battery backup uninterruptible power supply (UPS)
8 total battery backup & Surge protected outlets
Pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
Automatic Voltage Regulation (AVR) adjusts high and low voltages to a safe level, ensuring your equipment had reliable power and preserving the life of the battery

Features
Cold-start capable
Provides temporary battery power when the utility power is out

Energy meter
Provides actual kilowatt hours of usage for energy conscious users

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection

High online efficiency
Reduces utility costs, generates less heat

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding

SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services

SmartSlot
Customize UPS capabilities with management cards

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature


Smart-UPS Features & Benefits

Marketing Features
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry's most rigorous standards

Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world's most trusted network UPS with over 25 million units sold

Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities

Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications

Manageability

Audible Alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition

LED status display
Quickly understand unit and power status with visual indicators

Disconnected battery notification
Warns when a battery is not available to provide backup power

USB connection
Provides management of the UPS via a USB port (not available on all models)

Network manageable
Provides remote power management of the UPS over the network

Serial connectivity
Provides management of the UPS via a serial port

Adaptability

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation

Safety

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

Protection

Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes

Dataline surge protection
Provides protection of connected equipment from power surges on the data lines

Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage

Serviceability

Resettable circuit breakers
Enables a quick recovery from overload events
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Warranty
3 Year Warranty, $150,000 Equipment Protection Policy
UPS and connected equipment insurance from the industry's most trusted power protection manufacturer. Standard warranty: 3 years repair or replace (excluding battery) and 2 year for battery

Specifications
Product Smart-UPS Pro 1500VA Battery Backup & Surge Protector
Part Number SMT1500C
Color Black

Output
Output Power Capacity 1000 Watts / 1.44 kVA
Max Configurable Power 1000 Watts / 1.44 kVA
Nominal Output Voltage 120V
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Topology Line interactive
Waveform Type Sine wave
Output Connections 8 x NEMA 5-15R (Battery Backup) (4 x main outlets; 4 x controlled outlets)
Transfer Time 6 ms typical (10 ms maximum)

Input
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA 5-15P
Input Voltage Range for Main Operations 82 ~ 144V
Max Input Current N/A
Cord Length 1.83 m (6 ft.)

Batteries & Runtime
Battery Type Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte; Leakproof
Typical Recharge Time 3 hour(s)
Expected Battery Life 3 ~ 5 years
Battery Volt-Amp-Hour Capacity N/A
Runtime Chart Smart-UPS Runtime Chart Efficiency Chart
Communications & Management
Interface USB SmartSlot
Control Panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery: distinctive low battery alarm: configurable delays

Surge Protection and Filtering
Surge Energy Rating 680 Joules
Filtering Filtering Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449

Environmental
Temperature Operating: 0 ~ 40 DegreeC Storage: -15 ~ 40 Degree C
Relative Humidity Operating: 0 ~ 95 % Storage: 0 ~ 95 %
Elevation Operating: 0 ~ 3,000 meters Storage: 0 ~ 15,000 meters
Audible Noise 45 dBA
Online Thermal Dissipation 225.0 BTU/hr

Conformance
Regulatory Approvals Approvals CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
RoHS Compliant
REACH Contains No SVHCs

Physical
Maximum Height 21.9 cm (8.62")
Maximum Width 17.1 cm (6.73")
Maximum Depth 43.9 cm (17.28")
Net Weight 24.6 kg (54.23 lbs)

Package Contents
APC Smart-UPS 1500VA Battery Backup & Surge Protector
Smart UPS Signalling RS-232 Cable
USB Cable
Software CD
User's Manual
