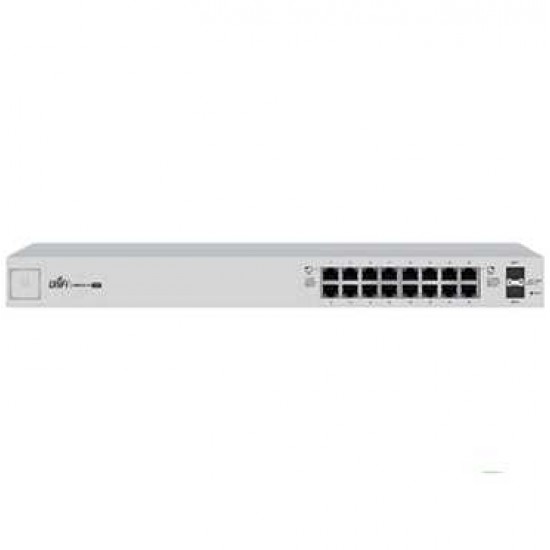

Ubiquiti UniFi 16 150W 16-Port Managed Gigabit PoE+ Switch w/ 2x SFP Ports

Technical Specifications
Product
UniFi® 16-Port Managed PoE+ Gigabit Switch w/ SFP
Part Number
US-16-150W


Standards
Wi-Fi 802.11a/b/g/n/ac
Interface
16 x 10/100/1000 Mbps RJ45 Ethernet ports
Ports
16 x Gigabit RJ45 ports
PoE Ports
2 x Gigabit SFP ports
Console Port
1 x Serial port


Non-Blocking Throughput
18 Gbps
Switching Capacity
36 Gbps
Forwarding Rate
26.78 Mpps


Buttons
Reset
LED Indicators
RJ45 Data Ports (16 ports)
PoE
Speed / Link / Activity (all ports)


Power
100-240VAC/50-60 Hz, Universal Input
AC/DC, 150W DC
PoE Interface
PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Power Consumption
150W max. (with PoE output)
Sound Level
34~37 dBA


Mounting
Rack mountable
Wall mountable


Temperature
Operating: -5 ~ 40°C (23 ~ 104°F)
Humidity
Operating: 5 ~ 95%, non-condensing


Certifications
CE, FCC, IC


Dimensions
443 x 43 x 221 mm (17.44" x 1.69" x 8.7")
Weight
2.8 kg (6.17 lbs) (without brackets)
2.89 kg (6.37 lbs) (with brackets)
Package Contents
Ubiquiti UniFi® 16-Port PoE+ Gigabit Switch w/ SFP
Power Cord
2 x Rack-Mount Brackets
8 x Bracket Screws
4 x Mounting Screws
4 x Cage Nuts
4 x Rubber Feet
Quick Start Guide
