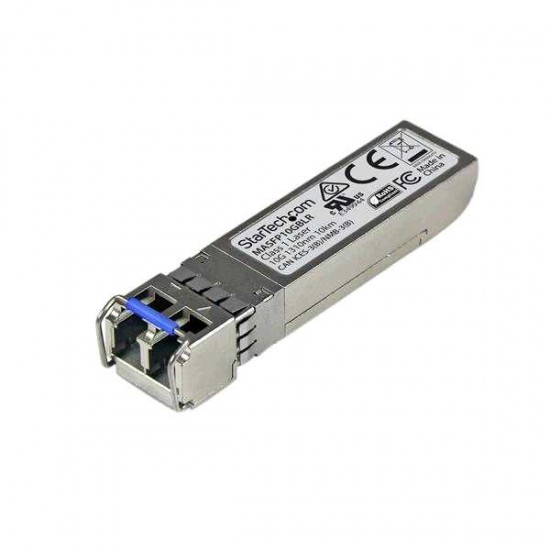

Startech Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Transceiver Module - 10GBASE-LR

Overview
The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications
Hardware

Compatible Brand
Cisco Meraki

Industry Standards
IEEE 802.3ae 10GBASE-LR
Performance

Compatible Networks
10 Gbps

DDM
Yes

Fiber Operating Mode
Full-Duplex

Max Transfer Distance
10 km (6.2 mi)

Maximum Data Transfer Rate
10 Gbps

MTBF
2,104,865 hours

Type
Single Mode

Wavelength
1310nm
Connector(s)

Local Unit Connectors
1 - Fiber Optic LC Duplex Female
Special Notes / Requirements

Note
For use in 10 Gigabit fiber networking equipment and media converters

System and Cable Requirements
MSA or Cisco Meraki compliant SFP+ port
Power

Power Consumption (In Watts)
< 1.2 W
Environmental

Humidity
5~95% RH

Physical Characteristics

Color
Silver

Enclosure Type
Aluminum

Product Height
0.5 in [12.6 mm]

Product Length
2.3 in [58.4 mm]

Product Weight
0.8 oz [22 g]

Product Width
0.5 in [13.9 mm]
Packaging Information

Shipping (Package) Weight
1.9 oz [53 g]
What's in the Box

Included in Package
1 - SFP+ transceiver
