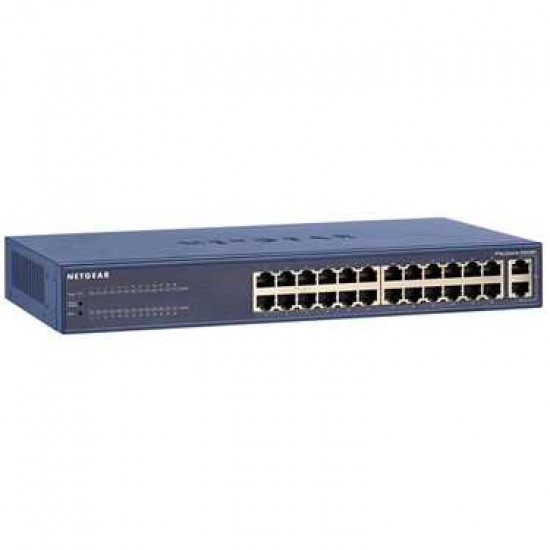

Netgear FS526T 24-Port Smart Switch with Gigabit Ports

Overview
The FS526T 24-Port Smart Switch with Gigabit Ports from Netgear features 24 10/100 Mb/s ports and 2 copper Gigabit Ethernet ports so you can keep up with your expanding network needs. This switch connects to servers or a Gigabit-speed backbone for a non-stop 10/100/1000-enabled network that can deliver large multimedia, image, and video files. All 26 RJ-45 ports automatically negotiate to the highest speed and support Auto Uplink technology to make the right link. In addition, an intuitive, web-browser interface offers simple switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritization. Shipped ready for use straight out of the box, the FS526T Switch delivers switching that's easy to set up and use.

Technical Specifications
Model
Ethernet Ports
24 x Fast Ethernet ports
Gigabit Ports
2
MAC Address Table Size
8 K
Buffer Size
512 KB
MTBF
334,168 hours
L2 Services: VLANS
VLAN Support
128
IEEE 802.1Q VLAN Tagging
Yes
IP Based VLANs
Yes
MAC Based VLANs
Yes
Voice VLAN
Based on phones OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP)
Security
Network Security
IEEE 802.1x Radius Port Access Authentication: MD5
Guest VLAN: Yes
RADIUS Accounting: Yes
MAC Lockdown by the Number of MACs: Yes
Dynamic Learned Entries per Port: 600
Static Entries per Port: 20
Network Storm Protection, DoS: Yes
Broadcast, Unicast, Multicast DoS Protection: Yes
DoS Attacks: Yes
IP-based ACLs: Yes
MAC (Trusted MAC): Yes
L4 ACL: Yes
Protected Port: Yes
L2 Services: Availability
Service Availability
IEEE 802.3ad - LAGs: Yes
LACP: Yes (8 LAGS with max. of 8 members in each LAG)
Broadcast Storm Control: Yes
IEEE 802.3x (Full Duplex and flow control): Yes
IEEE 802.1D Spanning Tree Protocol: Yes
IEEE 802.1w Rapid Spanning Tree: Yes
BPDU Guard: Yes
DoS Prevention: Yes
PoE Timer: Yes
L2 Services: Multicast Filtering
Filtering
IGMP Snooping (v1, v2c and v3): Yes
Max. Multicast Group: 128
IGMP Snooping Queries: Yes
Block Unknown Multicast: Yes
