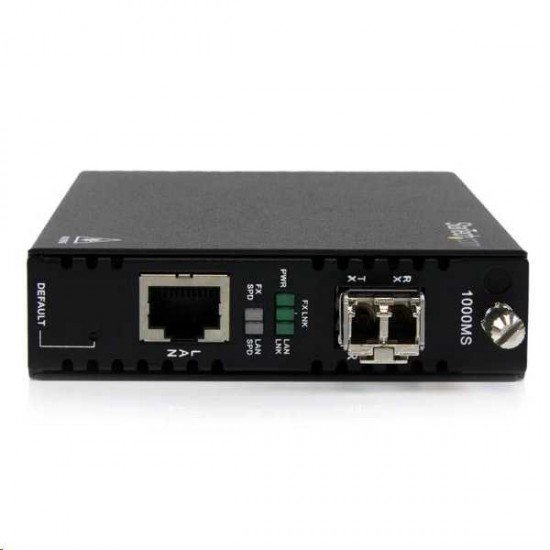

STARTECH OAM MANAGED GIGABIT ETHERNET FIBER MEDIA CONVERTER -MULTIMODE LC 550M

Overview

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.

Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.

An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable MSA-compliant SFP slot.

Technical Specifications

Product Numbers
Ingram Micro Canada 53748V
Tech Data Canada 3718CE
Synnex Canada 5212235
ASI Distribution Canada 147763
DandH Canada ET91000LCOAMCA
UPC Code 065030854566

Hardware
Industry Standards IEEE 802.3 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ah EFM
IEEE 802.3u 100BASE-TX
IEEE 802.3z 1000BASE-LX
IEEE 802.3z 1000BASE-SX
PoE No
WDM No

Performance
Auto MDIX Yes
Compatible Networks 1000 Mbps (1 Gbps)
DDM No
Fiber Operating Mode Full-Duplex
Max Transfer Distance 550 m (1804 ft)
Maximum Data Transfer Rate 1.25 Gbps
MTBF 65,000 Hrs
Type Multi Mode
Wavelength 850nm

Connector(s)
Local Unit Connectors 1 - Fiber Optic LC Duplex Female
1 - RJ-45 Female

Power
Center Tip Polarity Positive
Input Current 0.36 A
Input Voltage 100 ~ 240 AC
Output Current 1.6 A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 12
Power Source AC Adapter Included

Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 0.9 in [23 mm]
Product Length 6.4 in [163 mm]
Product Weight 14.5 oz [411 g]
Product Width 3.4 in [87 mm]
Packaging Information

Shipping (Package) Weight 27.9 oz [789 g]

What's in the Box
Included in Package 1 - Fiber Media Converter
1 - Grounding Screw
1 - Universal Power Adapter (NA/EU/UK/AU)
1 - Instruction Manual
