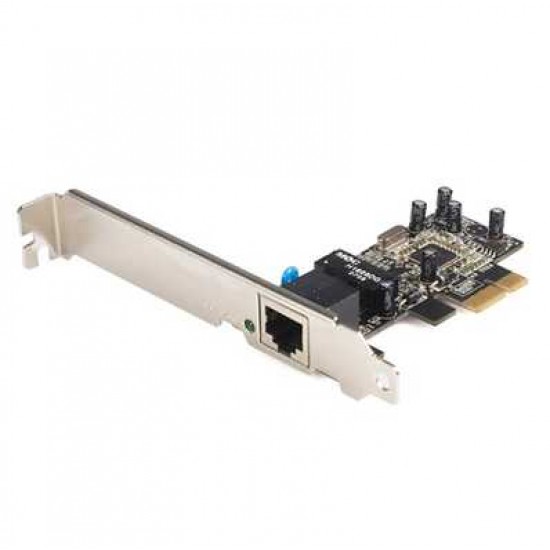

STARTECH 1PORT PCIE ETHERNET NETWORK CARD

1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card
Single 10/100Mbps RJ45 Ethernet port
Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards
Crossover Detection & Auto-Correction (Auto-MDIX)

This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management.
The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slimline) and ATX system form factors, and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration

Technical Specifications

Warranty Information
Warranty Lifetime
Hardware
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Realtek - RTL8101E
Interface RJ45 (10/100 Ethernet)
Ports 1
Performance
Compatible Networks 10/100 Mbps
Maximum Data Transfer Rate 100 Mbps
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 1 - RJ-45 Female
Software
OS Compatibility Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016, 2019 Linux 2.6.x to 4.11.x LTS Versions Only
Indicators
LED Indicators 1 - Link Status
Physical Characteristics
Product Height 0.8 in [2.1 cm]
Product Length 3.6 in [92.5 mm]
Product Width 4.7 in [12 cm]
Weight of Product 1.1 oz [32 g]
Packaging Information
Package Height 1.2 in [30 mm]
Package Length 5.7 in [14.4 cm]
Package Width 6.8 in [17.2 cm]
Shipping (Package) Weight 4.4 oz [124 g]
What's in the Box
Included in Package 1 - 10/100 PCI-Express Ethernet Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
