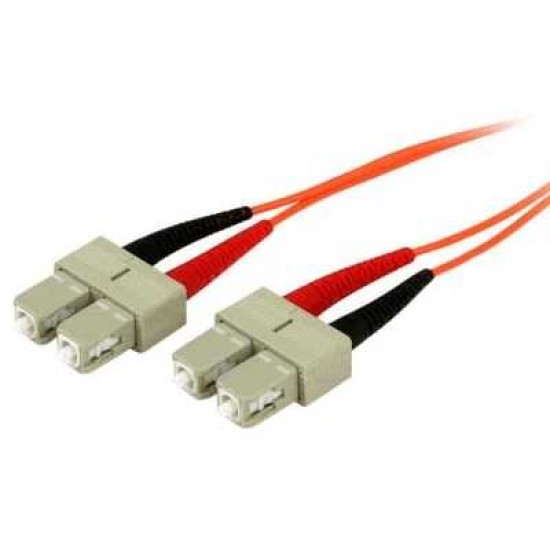

STARTECH 3M SC TO SC DUPLEX MULTIMODE PLENUM 50/125 FIBER PATCH CABLE

OVERVIEW:

The 50FIBPSCSC3 3m SC to SC Plenum Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.

The OFNP Plenum rating is ideal for installation in air plenums, ducts, walls, conduit, ceilings, etc. where CMP fire rating is required.

Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability

Technical Specifications

Warranty Information
Warranty Lifetime
Hardware
Fiber Size 50/125
Fire Rating OFNP Plenum Rated
Performance
Cable Rating 1Gbps / 10Gbps
Fiber Classification OM2
Maximum Data Transfer Rate 10Gbps
Type Multi Mode
Connector(s)
Connector A 1 - Fiber Optic SC Duplex Male
Connector B 1 - Fiber Optic SC Duplex Male
Environmental
Humidity 0~90% RH
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Cable Length 9.8 ft [3 m]
Color Orange
Product Height 0.4 in [10 mm]
Product Length 9.8 ft [3 m]
Product Width 1 in [25 mm]
Weight of Product 2.2 oz [62 g]
Packaging Information
Package Height 1.1 in [28 mm]
Package Length 8.7 in [22 cm]
Package Quantity 1
Package Width 7.9 in [20 cm]
Shipping (Package) Weight 2.5 oz [70 g]
What's in the Box
Included in Package 1 - 3m Plenum Multimode 50/125 Duplex Fiber Patch Cable SC - SC
