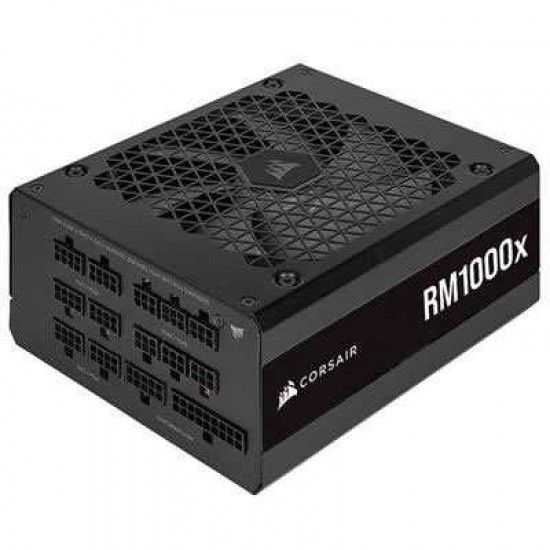

CORSAIR RMX SERIES 1000W 80PLUS GOLD FULLY MODULAR ATX POWER SUPPLY

Product Info
RMx Series RM1000x 1000 Watt 80 PLUS® Gold Fully Modular ATX PSU
CORSAIR RM1000x Series fully modular power supplies with EPS12V connectors are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC, with virtually silent operation.

1000W, 80 Plus Gold Efficiency w/ over 90% efficiency
Fully modular, 100% Japanese capacitors
ZeroRPM fan mode
Magnetic Levitation Bearing fan
Over-voltage protection (OVP), Over-current protection (OCP), Short-circuit protection (SCP), Over-temperature protection (OTP), and Under-Voltage Protection (UVP) provide maximum safety to your critical system components

Total Output 1000W @ 50° C

80 PLUS® Yes, 80 PLUS® Gold certified
Power Factor Correction Active PFC

Cooling 135mm Fan
Fan Bearing Technology Magnetic Levitation Bearing

Connectors 1 x ATX Connector (610mm)
2 x EPS 8-Pin (4+4) Connector (650mm)
12 x 4-Pin Peripheral Connectors (750mm)
6 x PCI-E 8-Pin (6+2) Connectors (750mm)
14 x SATA Connectors (750mm / 850mm)
1 x Floppy Connector (101mm)
Modular Cable Type Fully modular

MTBF 100,000 Hours

Protection Over-Voltage protection OVP
Short-Circuit protection SCP
Over-Current protection OCP
Over-Temperature protection OTP
Under-Voltage Protection UVP

Safety Approvals FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH

Dimensions (WxHxL) 150 x 86 x 180 mm
Weight 2kg
Package Contents
Corsair RMx Series RM1000x 80+ Gold ATX Modular Power Supply, 1000W
AC Power Cord
Mounting Screws
Cable Ties
User Manual
