UBIQUITI UNIFI SWITCH

Product Info

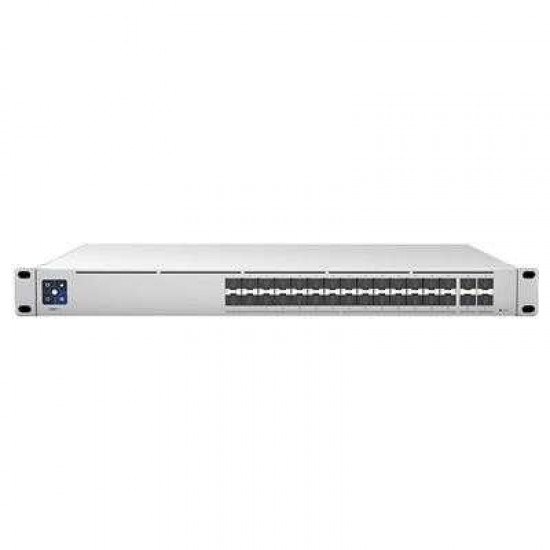

Switch Pro Aggregation Layer 3 Switch with (28) 10G SFP+ Ports and (4) 25G SFP28 Ports
The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

1.3" LCM color touchscreen with AR switch management
28x 10G SFP+ ports
4x 25G SFP28 ports
1x USP RPS DC input
760 Gbps switching capacity
Layer 3 switching features

Specifications
Product UniFi® Pro Aggregation Switch
Part Number USW-Pro-Aggregation

Interface 28x 1/10 Gbps SFP+ Ethernet
4x 1/10/25 Gbps SFP28 Ethernet*
* The four SFP28ports don't support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.

Non-Blocking Throughput 380 Gbps
Switching Capacity 760 Gbps
Forwarding Rate 565.44 Mpps

Modes SMB Layer 3 10/25 G Fiber Switch

ESD/EMP Protection Air: ±16 kV, Contact: ±12 kV

Buttons Reset
LCD Display 1.3" Touchscreen
LED Indicators SFP28/SFP+: White, Link and Activity

Power Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
USP-RPS DC input, 11.5VDC, 8.7A
Power Supply AC/DC internal, 100W
Power Consumption 100W max.

Mounting Rack mountable

Temperature Operating: -5 ~ 40°C (23 ~ 104°F)
Humidity Operating: 10 ~ 90%, non-condensing

Materials SGCC Steel

Certifications CE, FCC, IC

Dimensions 442 x 44 x 325 mm (17.4" x 1.7" x 12.8")
Weight 4.6kg (10.14 lbs) (without mount)
4.7kg (10.36 lbs) (with mount)
Package Contents
Ubiquiti UniFi® Switch Pro Aggregation Managed Switch, P/N: USW-Pro-Aggregation
Power Cord
Installation Guide
