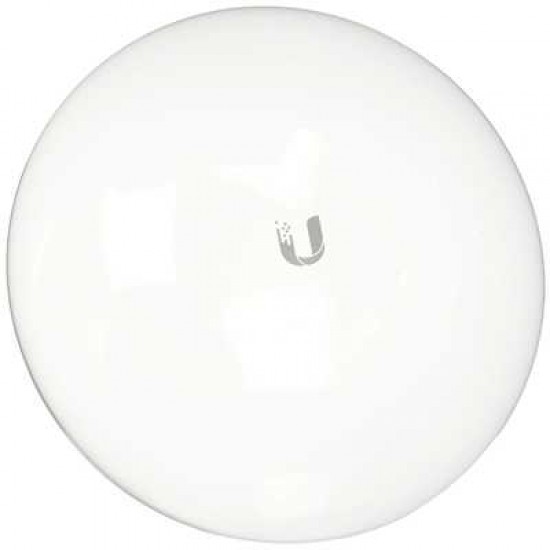

UBIQUITI 5GHZ NANOBEAM AIRMAX 16DB ACCESS POINT

Ubiquiti
airMAX NanoBeamM 5GHz Wireless Bridge, 16dBi

Product Info
NanoBeam®M High-performance airMAX® Bridge
High-Performance airMAX® Bridge Incorporating innovative industrial design with advanced technology, the NanoBeam®M is the latest generation of Ubiquiti airMAX® CPE for customer locations.

Uniform Beam-width maximizes noise immunity
Innovative mechanical design
High-speed processor for superior performance
airMAX® ac technology
5 GHz, 16 dBi high-performance
Features
Improved Noise Immunity

Available for the 2.4 and 5 GHz frequency bands, the NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

The Ubiquiti® Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint.

Providing increased performance from its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost-effective to deploy.

airMAX Technology Included

Unlike standard Wi-Fi protocol, Ubiquitis Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

Specifications
Product 5GHz airMAX NanoBeamM High Performance Bridge
Part Number NBE-M5-16

Processor Atheros MIPS 74Kc, 533 MHz
Memory 64MB DDR2 RAM
8MB Flash

Operating Frequency Worldwide: 5150 ~ 5875 MHz
USA: U-NII-1: 5150 ~ 5250 MHz
USA: U-NII-2A: 5250 ~ 5350 MHz
USA: U-NII-2C: 5470 ~ 5725 MHz
USA: U-NII-3: 5725 ~ 5850 MHz
Interface 1 x 10/100/1000 Ethernet port
Gain 16 dBi

Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual linear

Buttons Reset
LED Indicator 1 x Power
1 x LAN
4 x WLAN

Power Supply 24 V, 0.5A PoE Gigabit PoE
Power Consumption 6W max.

Mounting Pole-mount (kit included)
Wall-mount

Wind Loading 21.4 N @ 200 km/h (4.8 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)

Temperature Operating: -40 ~ 70°C (-40 ~ 158°F)
Humidity Operating: 5 ~ 95%, non-condensing
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Enclosure Outdoor UV stabilized plastic

Certifications CE, FCC, IC
RoHS Compliance Yes

Dimensions 140 x 140 x 54 mm (5.51" x 5.51" x 2.13")
Weight 320g (0.71 lb.)
Package Contents
Ubiquiti 5GHz airMAX NanoBeamM High Performance Bridge, 16dBi
Power Cord
PoE Adapter
Ball Joint Mount
Lock Ring
Metal Strap
Quick Start Guide
