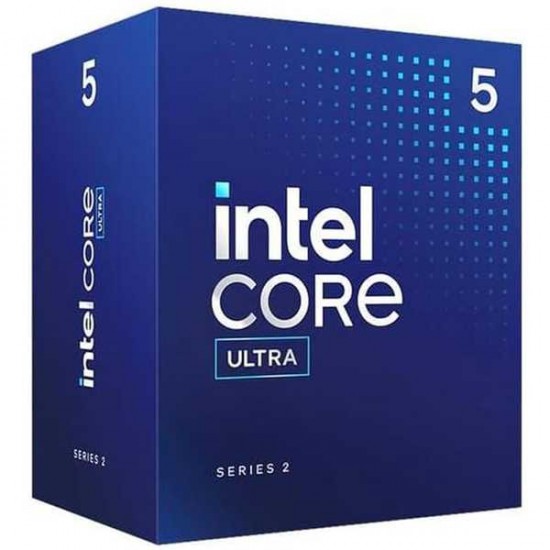

INTEL CORE ULTRA 5 DESKTOP PROCESSOR 225 WITH 10 CORES

Specifications
Processor Intel® Core Ultra 5 Desktop Processor 225
Overall Peak TOPS (Int8) 23 TOPS
Number of Cores 10 (6P + 4E)
Number of Threads 10
Max Turbo Frequency 4.90 GHz
Intel® Thermal Velocity Boost Frequency N/A
Intel® Turbo Boost Max Technology 3.0 Frequency N/A
Performance-core Max Turbo Frequency 4.90 GHz
Efficient-core Max Turbo Frequency 4.40 GHz
Base Clock Speed P-core: 3.30 GHz
E-core: 2.70 GHz
Cache 20 MB Intel® Smart Cache
Total L2 Cache 22 MB
Unlocked No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
AI Software Frameworks Supported by CPU OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Memory
Max Memory Size 256 GB
Memory Type Up to DDR5 6400 MT/s
Memory Channels 2
ECC Memory Support N/A

Graphics
Processor Graphics Intel® Graphics
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.8 GHz
GPU Peak TOPS (Int8) 4
Execution Units 2 Xe-cores
Graphics Output DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Max Resolution HDMI: 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
DP: 8K @ 60Hz
eDP: 4K @ 60Hz
DirectX Support 12
OpenGL Support 4.5
OpenCL Support 3
Intel® Quick Sync Video Yes
# of Displays Supported 4
Intel® Deep Learning Boost (Intel® DL Boost) on GPU Yes

NPU
NPU Name Intel® AI Boost
NPU Peak TOPS (Int8) 13
Sparsity Support Yes
Windows Studio Effects Support Yes
AI Software Frameworks Supported by NPU OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 / 4.0
PCI Express Configurations Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max # of PCI Express Lanes 24

Advanced Technologies
Intel® Volume Management Device (VMD) Yes
Intel® Gaussian and Neural Accelerator (GNA) 3.5
Intel® Thread Director Yes
Intel® Speed Shift Technology Yes
Intel® Thermal Velocity Boost No
Intel® Turbo Boost Max Technology No
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology No
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes

Security & Reliability
Intel vPro® Eligibility N/A
Intel® Threat Detection Technology (TDT) N/A
Intel® Active Management Technology (AMT) N/A
Intel® Standard Manageability (ISM) Yes
Intel® Remote Platform Erase (RPE) N/A
Intel® One-Click Recovery N/A
Intel® Hardware Shield Eligibility N/A
Intel® Control-Flow Enforcement Technology Yes
Intel® Total Memory Encryption - Multi Key N/A
Intel® AES New Instructions Yes
Intel® Secure Key Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® OS Guard Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Stable IT Platform Program (SIPP) N/A
Intel® Virtualization Technology with Redirect Protection (VT-rp) N/A
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes

Packaging
Thermal Solution PCG 2022C
Processor Base Power 65 W
Maximum Turbo Power 121 W
Architecture TSMC N3B (3nm)
Socket Socket LGA 1851
